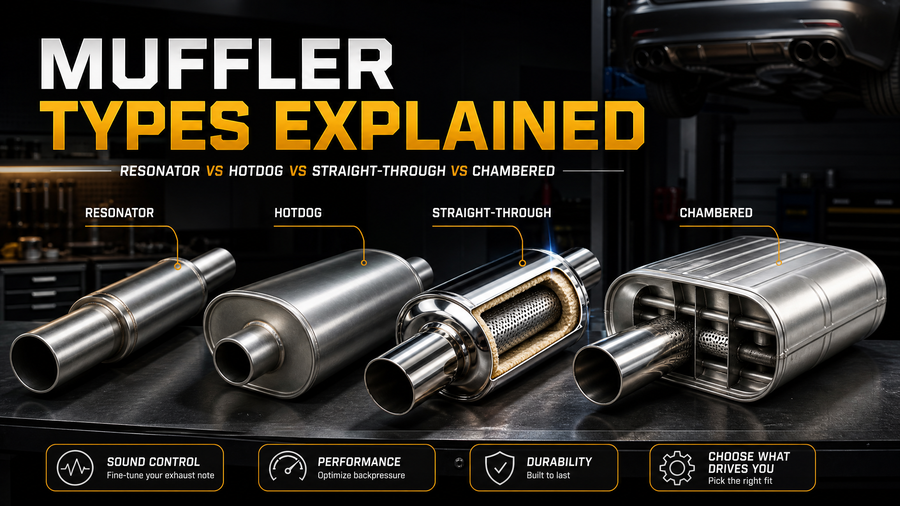

Muffler Types Explained: Resonator vs Hotdog vs Straight-Through vs Chambered

“Muffler” gets used as a catch-all term, but there are several distinct designs underneath it, each with a different effect on sound, flow and drone. If you’ve been comparing options and can’t quite work out why a resonator sounds different to a hotdog, or why a straight-through muffler is louder than a chambered one, this guide sorts out the differences so you can pick the right one for what you actually want out of your car.

Table of Contents

1. What Does a Muffler Actually Do?
2. Resonators Explained
3. Hotdog Mufflers Explained
4. Straight-Through (Glasspack) Mufflers Explained
5. Chambered Mufflers Explained
6. Other Muffler Styles Worth Knowing
7. Which Muffler Type Suits Your Goals?
8. FAQs

What Does a Muffler Actually Do?

At its core, a muffler manages sound waves and exhaust pulses so the exhaust note sits at a more acceptable volume and tone without creating unnecessary restriction in the exhaust system. Different internal designs achieve this in different ways — some use chambers to redirect and cancel sound, some use a straight perforated core wrapped in packing, and some use a combination of both. That internal design is what separates a resonator from a hotdog, a straight-through muffler, a chambered muffler or a turbo-flow style muffler.

Resonators Explained

A resonator is an exhaust sound-control component usually fitted alongside the main muffler rather than instead of one. Its job is generally to reduce particular frequencies, rasp or drone rather than simply make the whole system quieter.

That’s why resonators are often used to clean up the sound of an exhaust rather than dramatically reduce volume. They’re especially common on street-driven vehicles where the owner wants a better note without the annoying cabin drone that can show up at certain RPM ranges or cruising speeds.

Hotdog Mufflers Explained

Named for their simple cylindrical, straight-in-straight-out shape, hotdog mufflers are a compact universal option popular in custom and fabricated exhaust builds. In workshop language, “hotdog” usually describes the shape and size of the muffler more than a completely different internal technology.

Most hotdogs use a perforated straight-through core surrounded by packing material, which means many of them sit within the broader straight-through muffler family. They’re a common choice when space is tight or when a builder wants some sound reduction in a compact, easy-to-mount package.

Straight-Through (Glasspack) Mufflers Explained

Straight-through mufflers — sometimes called glasspacks — use a perforated pipe running directly through the muffler body, wrapped in sound-absorbing packing such as fibreglass, stainless wool or similar material. Because the exhaust flow is not being forced through chambers or sharp internal direction changes, straight-through mufflers generally offer very good flow.

That usually means a louder, more aggressive note and a greater chance of drone if the rest of the system isn’t matched properly. It’s also why straight-through mufflers are popular in performance applications.

A lot of hotdog mufflers use this same basic principle, just in a smaller cylindrical package. So while “hotdog” and “straight-through” often get discussed separately in retail language, there is a fair bit of overlap between them.

Chambered Mufflers Explained

Chambered mufflers use a series of internal chambers to reflect and cancel sound waves against each other, rather than relying purely on absorptive packing. This usually produces a deeper, more controlled tone with less rasp than a typical straight-through design, although it can also introduce more restriction depending on the exact design.

They’re a popular choice for owners who want a noticeably deeper exhaust note without going too loud or too raw. In many street-driven setups, a chambered muffler can give a cleaner, fuller tone than a small straight-through muffler.

Other Muffler Styles Worth Knowing

Turbo-flow mufflers: These are a recognised muffler style in their own right. They’re commonly glass-packed internally, but instead of flowing straight through, they use internal passages and guide sections to redirect the exhaust through the muffler before it exits. In other words, the exhaust changes direction within the muffler rather than taking a straight path from inlet to outlet. Despite the name, “turbo-flow” refers to the muffler style — not necessarily to turbocharged engines only. Shop turbo mufflers

Tri-flow or triple-flow mufflers: These are similar in concept in that the exhaust changes direction more than once before leaving the muffler. A typical tri-flow path enters the muffler, does a 180-degree direction change, passes back through the body, then does another 180-degree change before exiting — effectively flowing three ways before it comes out. Many are also glass-packed, but compared with some turbo-flow designs, they may rely less on internal guide pieces and more on the path layout itself to redirect the exhaust. Shop tri-flow mufflers

Truck mufflers: Built for heavier-duty applications, generally with larger bodies and an emphasis on sound reduction and durability. Shop truck mufflers

Baffled mufflers: Use internal baffles or plates to break up and redirect exhaust pulses. Depending on the design, they can sit somewhere between chambered and more traditional restrictive muffler layouts. Shop baffled exhaust

The main takeaway is that names alone don’t always tell the whole story. Two mufflers can both be called “turbo”, “tri-flow” or “straight-through” and still differ in packing, body size, internal layout and sound.

Which Muffler Type Suits Your Goals?

Frequently Asked Questions

What’s the difference between a resonator and a muffler? A resonator is usually used alongside the main muffler and is aimed more at targeting certain frequencies, rasp or drone. A muffler is the primary sound-control component of the exhaust system.

What’s the difference between a hotdog and a straight-through muffler? A hotdog usually refers to the compact cylindrical shape of the muffler. Most hotdogs use a straight-through perforated core with packing, so many of them are effectively a smaller straight-through muffler.

Do straight-through mufflers drone? They can, particularly at certain cruising RPMs, because there’s less internal redirection and sound cancellation than in a chambered setup. Pairing a straight-through muffler with a resonator is a common way to reduce this.

Which muffler is loudest? Often, small straight-through or hotdog-style mufflers are among the louder options, especially when compared with larger chambered or turbo-flow designs. That said, the final volume depends on the muffler size, packing, engine and the rest of the exhaust system.
