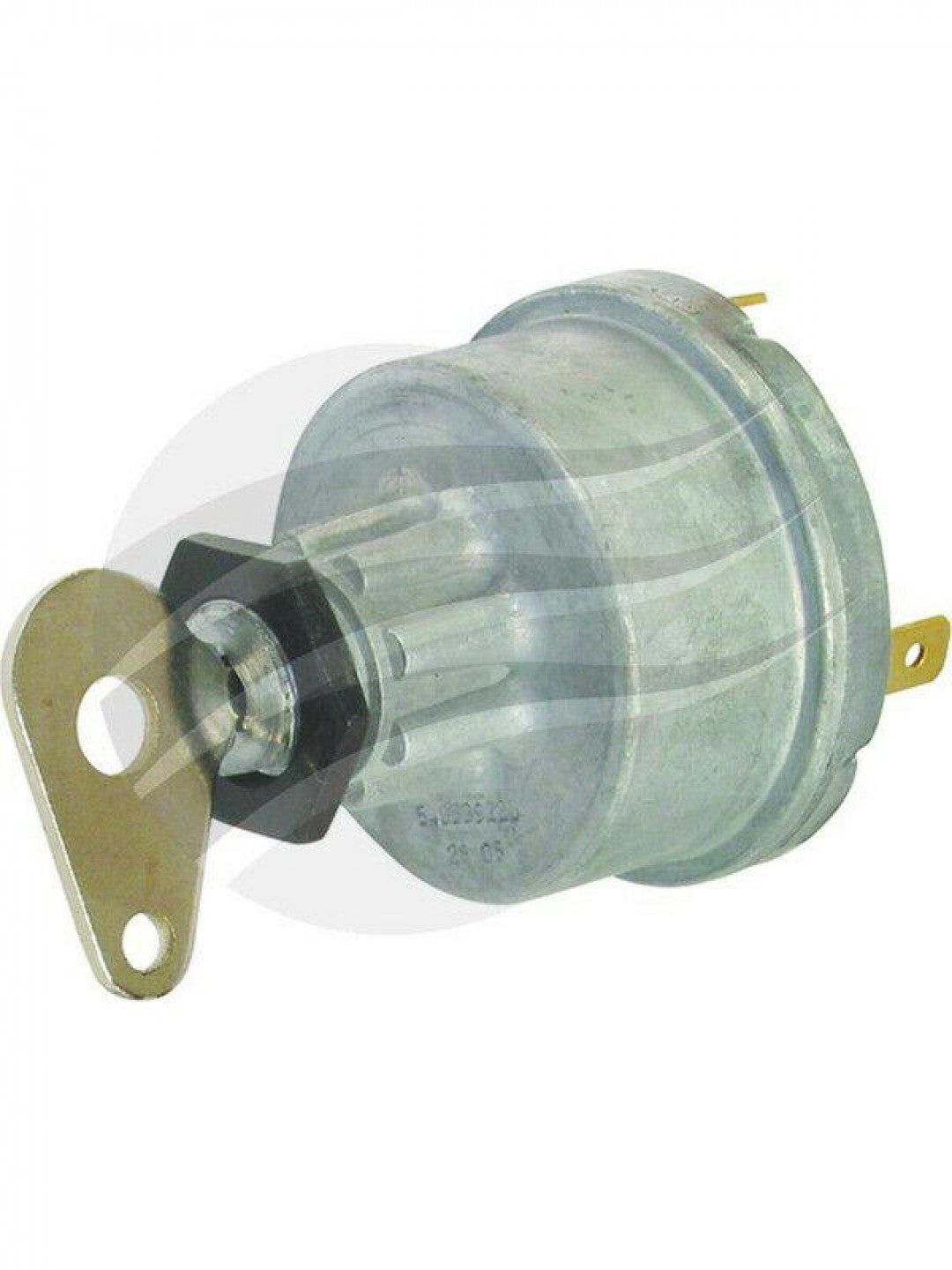

Lucas Diesel Ignition Switch 12/24 Volt 50amp.
Lucas Part No. 35670
4 Position - Off/Glow/Glow Start- 2 keys- spring return to Ign.
Maximum Load all at 12 Volt: 50amp at Ignition Run - Glow- 5amp at Start.
Key is only removable in the Off position.
Copper Contacts- Corrosion resistant Die-cast housing.
6 Brass Blade terminals.
Mounting Stem: 22.00mm long with a 3/4"-24 thread and 15.80mm diameter.-Suits panel thickness 1.52mm to 6.65mm.-Replaces Lucas Part No. 34228
KS34228.-1 year Warranty.-Applications:-Massey Ferguson Tractors.-SW9601-Lucas
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | 50 |
| Function | OFF / GLOW / GLOW START |
| Number of Terminals | 6 |
| Number of Postions | 4 |
