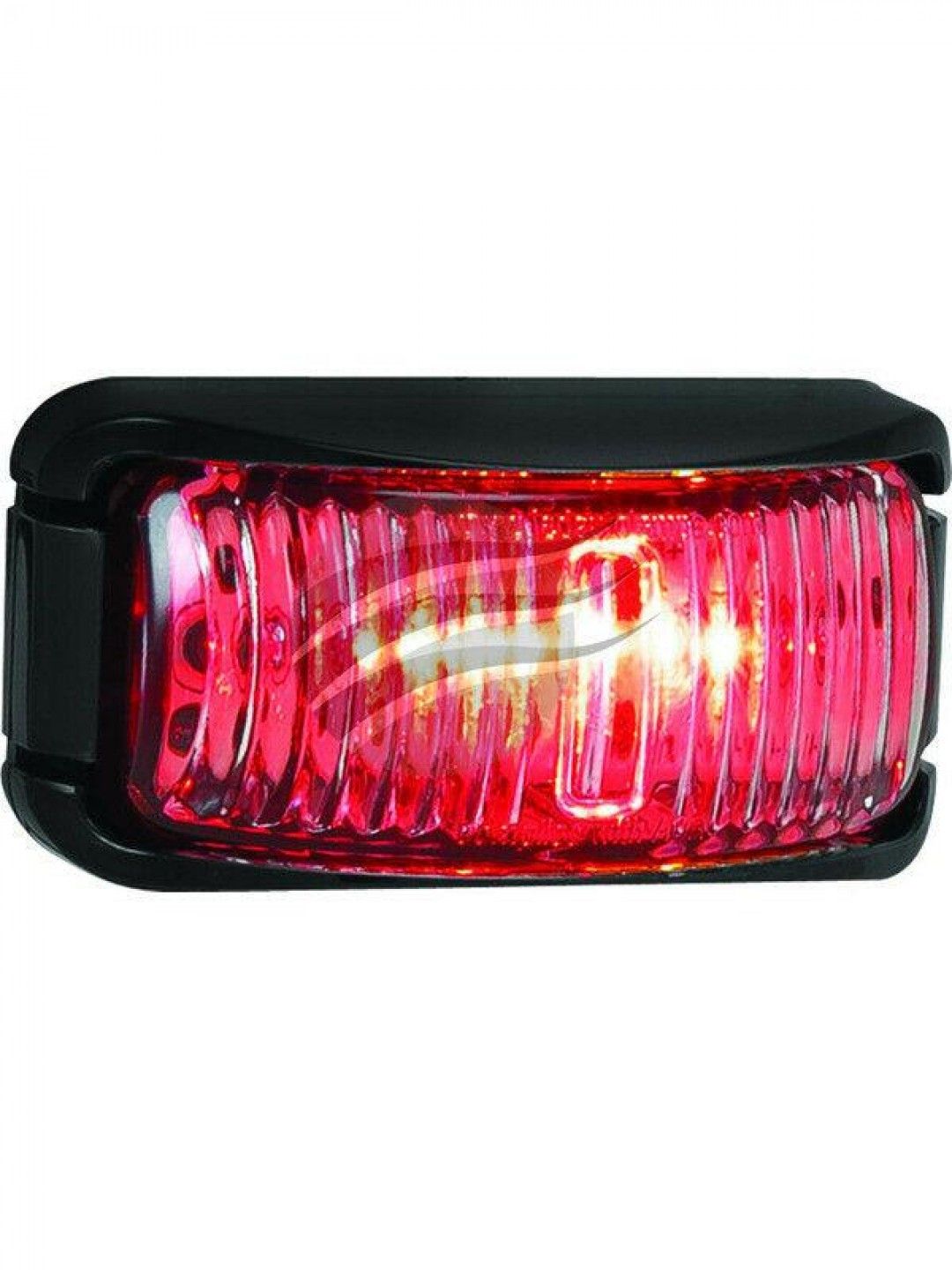

Jaylec LED Rear End Position Outline Marker Lamp 12/24 Volt
Red Illumination
2 x High Intensity White LED's
Clear Hardened Acrylic Lens with New Magnified pattern lens
Black Plastic Housing with mounting screws included
Surface Mount - low mounting depth for easy installation
Tinned Copper Pre-wired 160mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.05amps at 12 Volt and 0.06amps at 24 Volt Current Draw
ADR 49/00 Rear Position Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
2 Year Warranty
| Specifications | |
| Colour | Red |
| Type | LED |
| Shape | Rectangular |
| Voltage | 12/24V |
| No. of LED | 2 |
| Mount | Surface |
| Width (mm) | 74 |
| Height (mm) | 38 |
| Depth (mm) | 35 |
