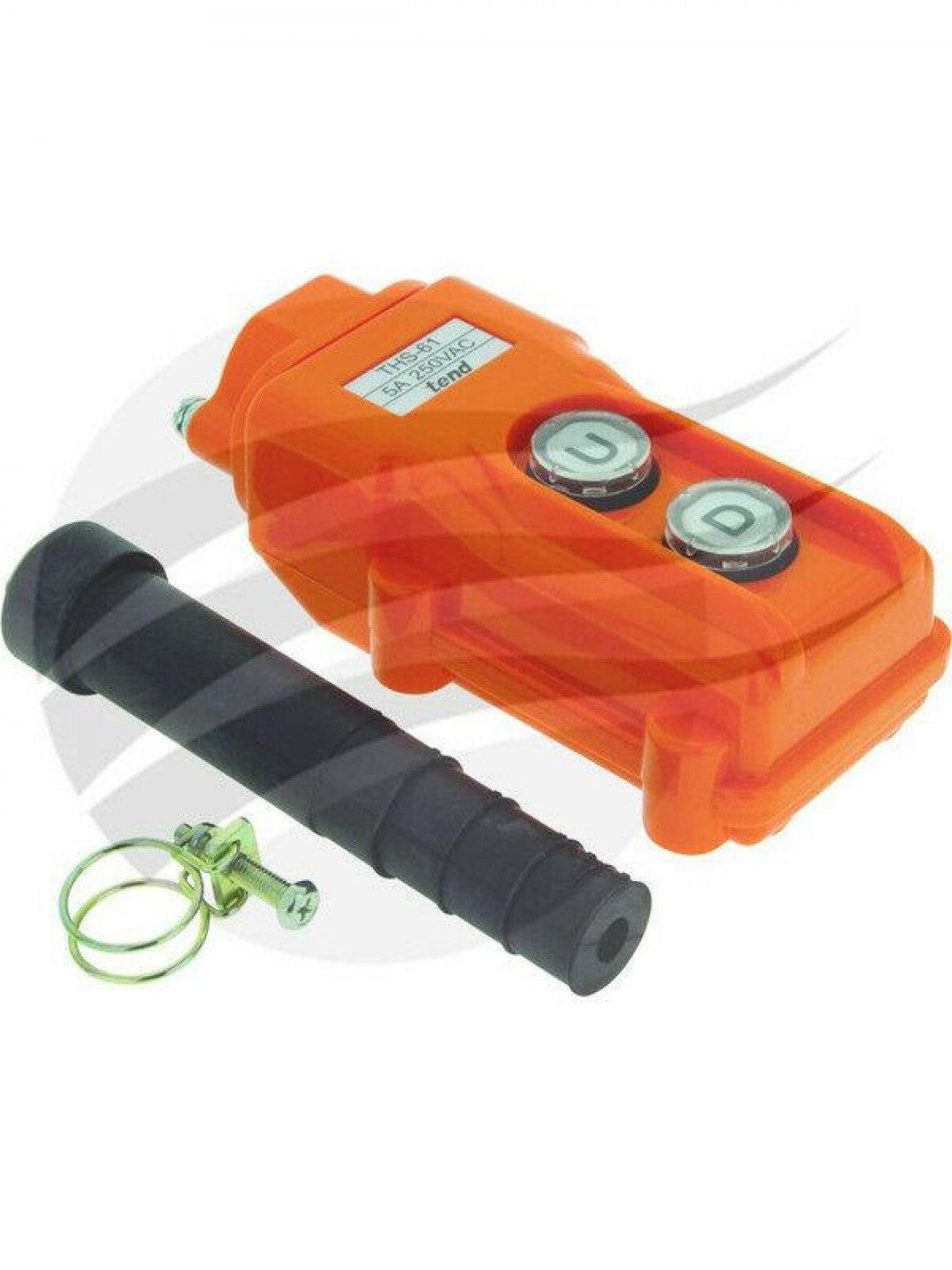

Jaylec Pendant/Hoist Push Button Switch 250/500 Volt AC 5amp.
Two way - Single Pole.
2 Direction Momentary Push Buttons - Up and Down.
Unit has One Control Magnetic switch.
Waterproof ABS Plastic housing.
Unique mechanical interlock design- which helps prevent short circuits.
2 x M4 Screw Terminals.
Able to accept external Cable diameter between 11.40mm to 12.60mm.
Supplied with protective Rubber wiring grommet.
1 year Warranty.
Dimensions:
240mm x 60mm x 50mm.
| Specifications | |
| Voltage | |
| Amps | 5 |
| Function | |
| Number of Terminals | 2 |
| Number of Postions | 2 |
