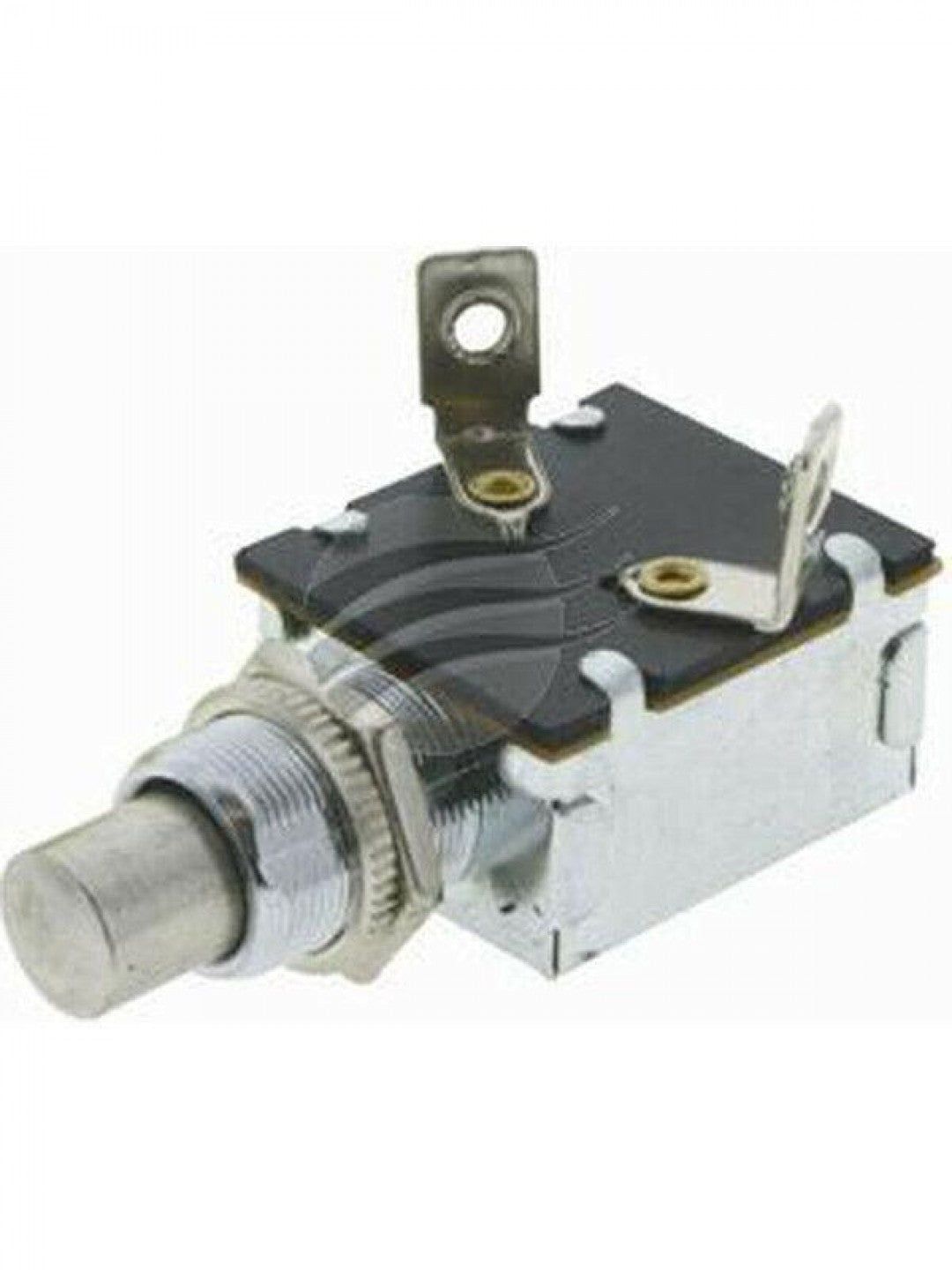

Jaylec Push Button Switch On/Mom Off 12/24 Volt 15amp.
2 Position - On/Mom Off - Single Pole - Single Throw- Chrome plated Actuator.
Maximum Load: 15amp at 12 Volt- 7.5amp at 24 Volt.
Off with actuator pressed- spring return to On position.
Copper Contacts.
2 Screw terminals.
Mounting Stem: 11.10mm long with a 5/8"-32 thread and 15.87mm diameter.-Suits panel thickness 1.52mm to 12.70mm.-1 year Warranty.--Dimensions:-60.50mm x 32.50mm x 30.10mm.--
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | 15 |
| Function | OFF / MOM ON |
| Number of Terminals | 2 |
| Number of Postions | 2 |
| Contact Configuration | SPST |
