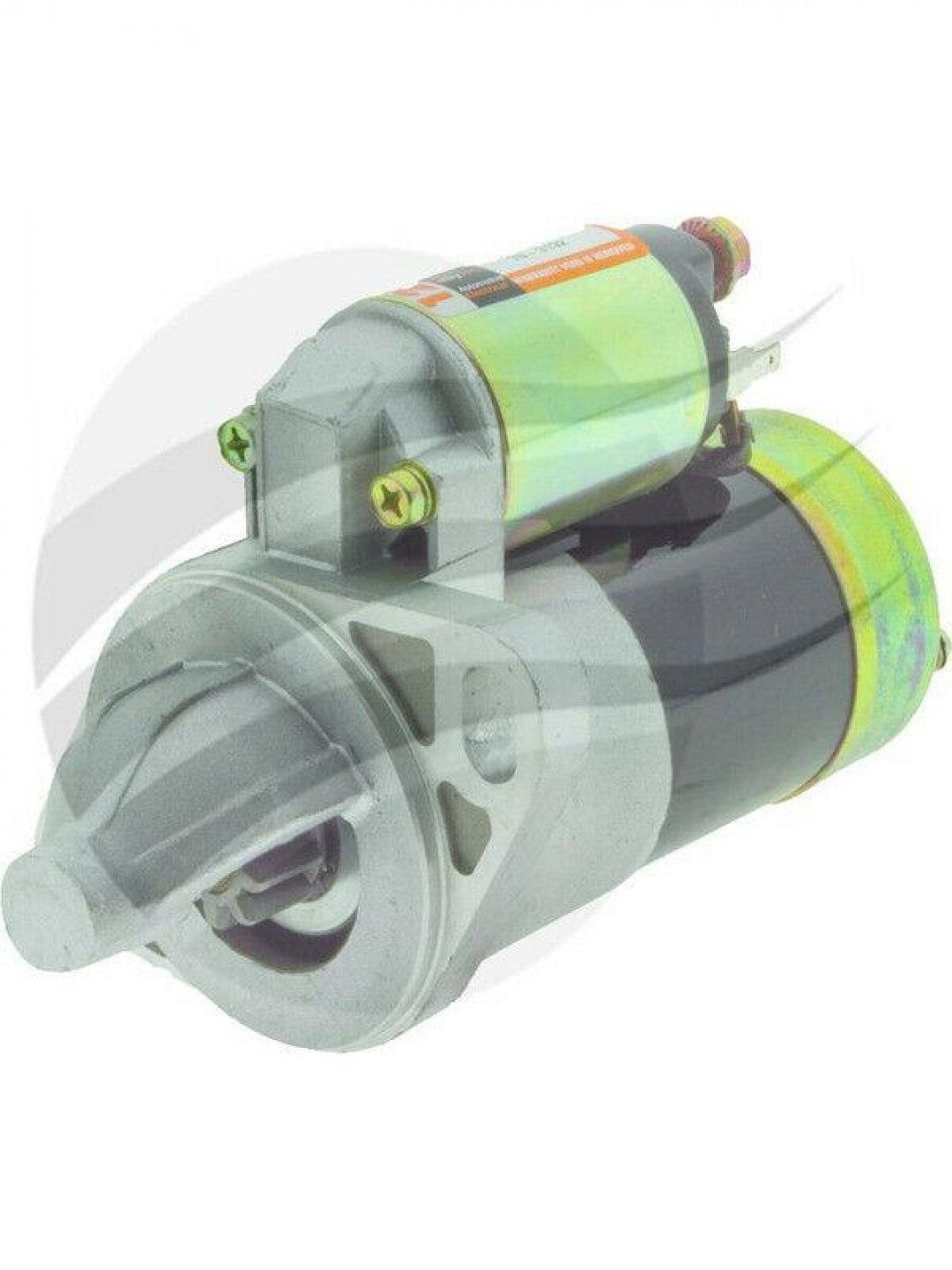

Description
Description
CHECK OVERALL LENGTH OF
STARTER AS MAY NOT FIT SOME
THERMOKING APPS WITH
YANMAR ENGINES.
| Specifications | |
| Voltage | 12V |
| Kilowatt | 1.2kW |
| Number of Teeth | 9T |
| Pinion Diameter | 29mm |
| Rotation | CW |
| Pinion at Rest | 17mm |
| Flange Diameter | 89mm |
| Mount Hole Center to Center | 126mm |
| Mount Hole Diameter | 11mm |
| Overall Length | 210mm |
| Oil Sealed | |
| Series | PMGR |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) | 4.0kg |
Cross-reference parts
- AM809215 ,
- AM879204 ,
- TY25238 ,
- AM880978
