Description
Description

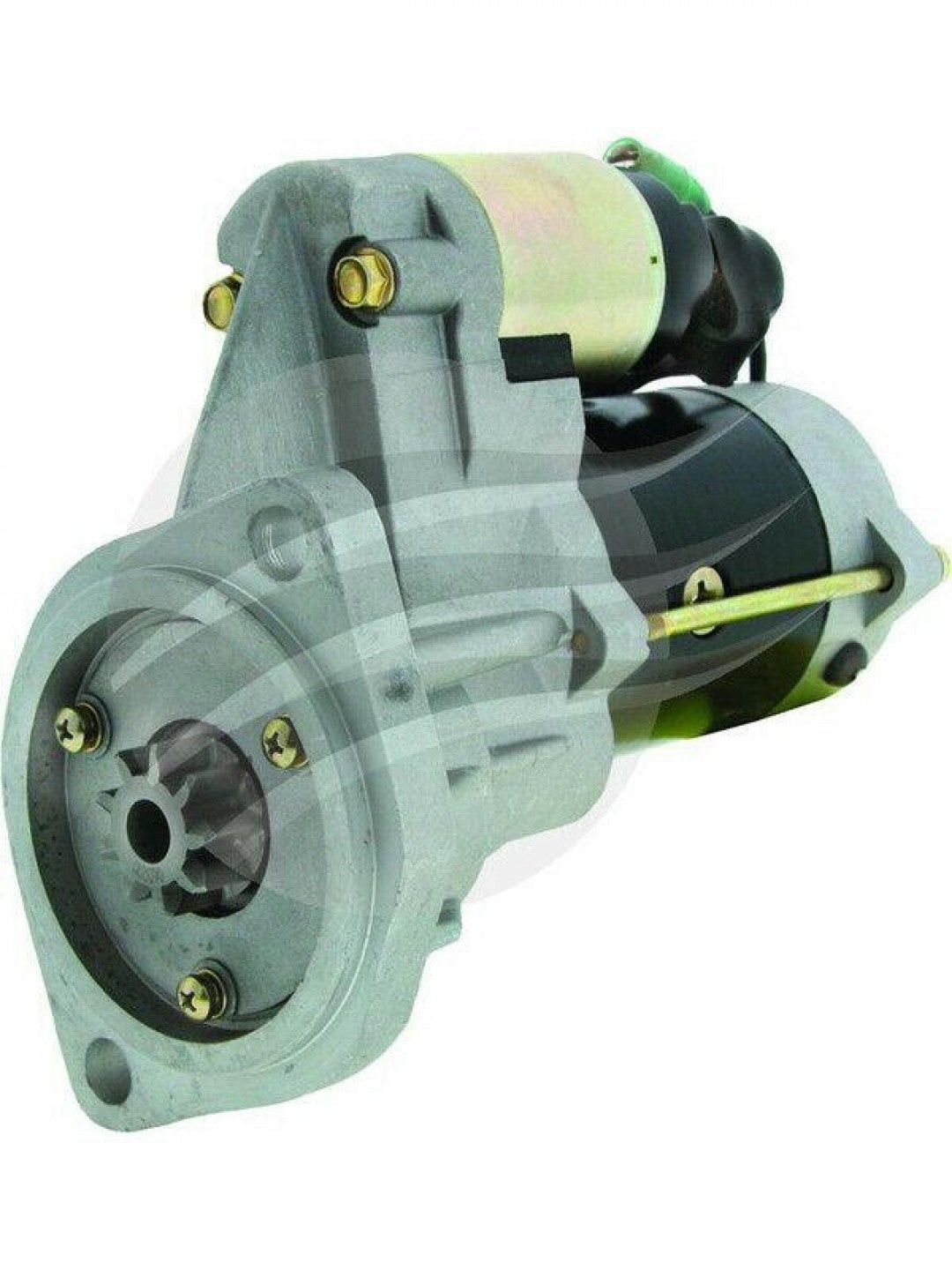

| Specifications | |
| Voltage | 12V |
| Kilowatt | 2.0kW |
| Number of Teeth | 9T |
| Pinion Diameter | 32mm |
| Rotation | CW |
| Pinion at Rest | 9mm |
| Flange Diameter | 95mm |
| Mount Hole Center to Center | 120mm |
| Mount Hole Diameter | 13mm |
| Overall Length | 228mm |
| Oil Sealed | |
| Series | |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) |
Cross-reference parts
- 23300G7003 ,
- 2330031W00 ,
- 23300T3470 ,
- 23300V0606 ,
- 2330031W04 ,
- 2330031WO2 ,
- 23300V0602 ,
- B330M31W04EX ,
- 23300V0600
