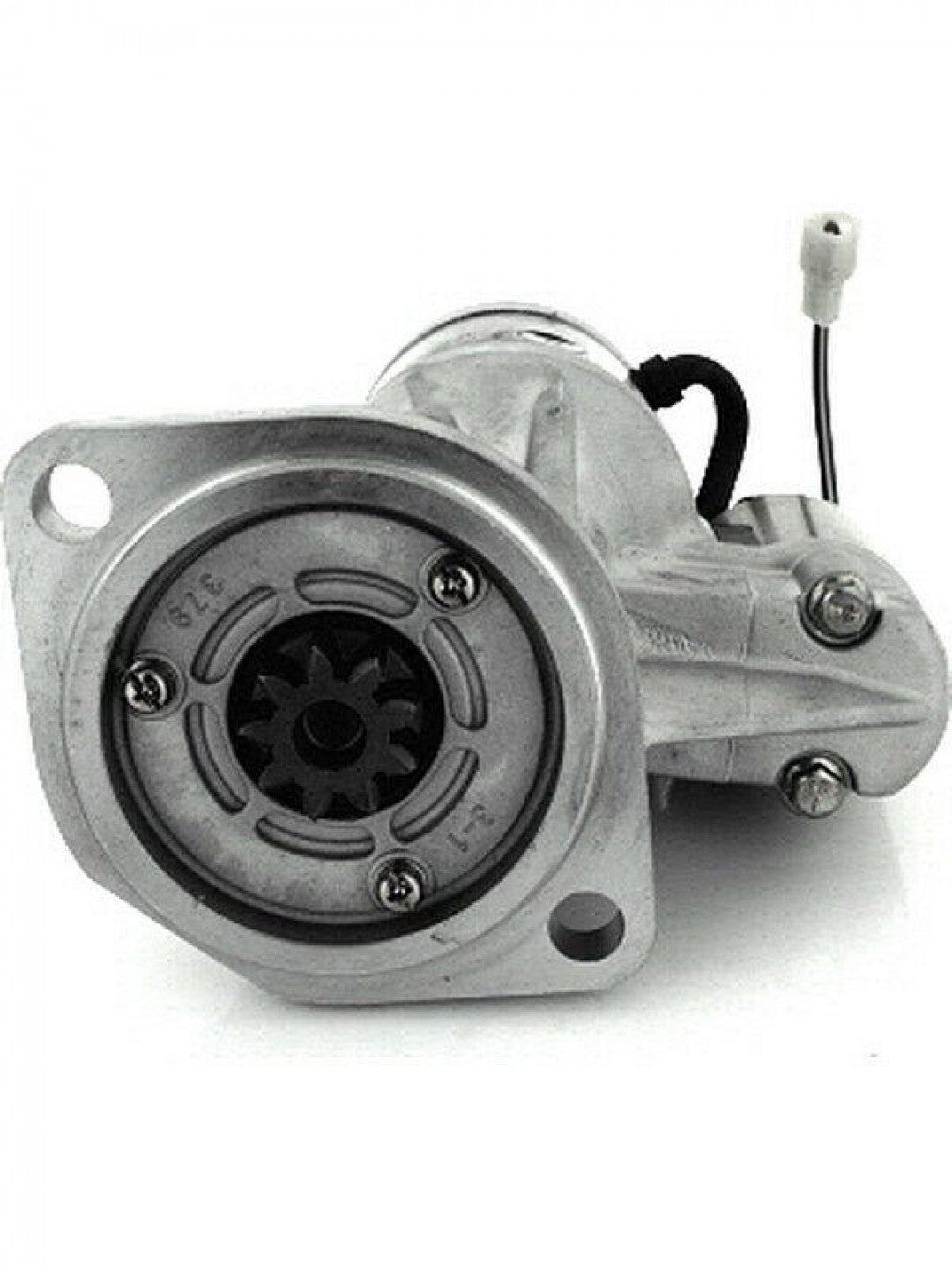

Description
Description
| Specifications | |
| Voltage | 12V |
| Kilowatt | 2.2kW |
| Number of Teeth | 9T |
| Pinion Diameter | 32mm |
| Rotation | CW |
| Pinion at Rest | 9mm |
| Flange Diameter | 95mm |
| Mount Hole Center to Center | 120mm |
| Mount Hole Diameter | 13mm |
| Overall Length | 225mm |
| Oil Sealed | |
| Series | |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) |
Cross-reference parts
- 8971366880 ,
- 8944339120 ,
- 97255390 ,
- 9120560 ,
- 97112549 ,
- 9120561 ,
- 9120565 ,
- 1202163 ,
- ADZ91211
