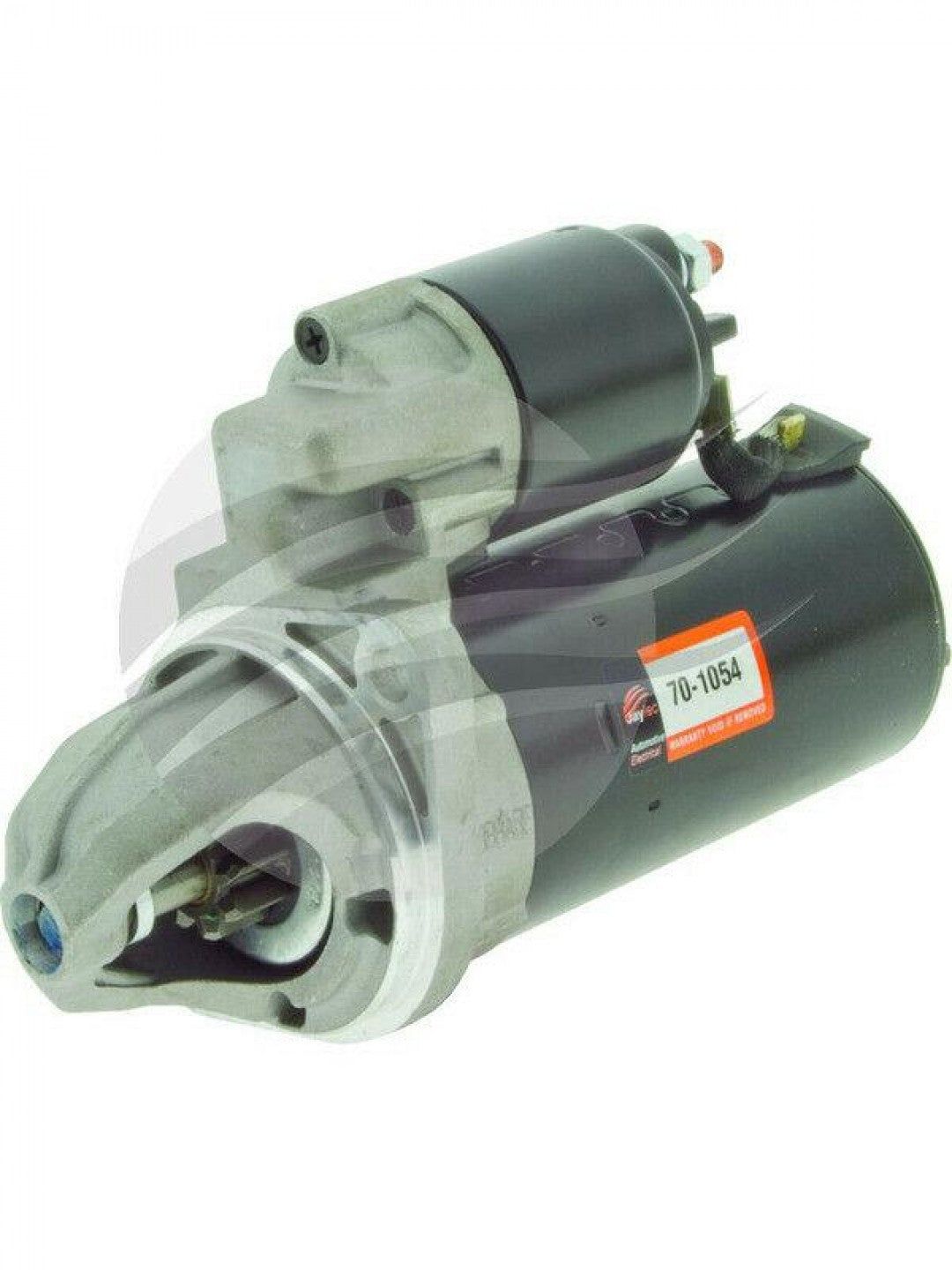

Description
Description
| Specifications | |
| Voltage | 12V |
| Kilowatt | 2.2kW |
| Number of Teeth | 9T |
| Pinion Diameter | 29mm |
| Rotation | CW |
| Pinion at Rest | 27mm |
| Flange Diameter | 82mm |
| Mount Hole Center to Center | 105mm |
| Mount Hole Diameter | 11mm |
| Overall Length | 237mm |
| Oil Sealed | |
| Series | PMGR |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) |
Cross-reference parts
- RE508922
