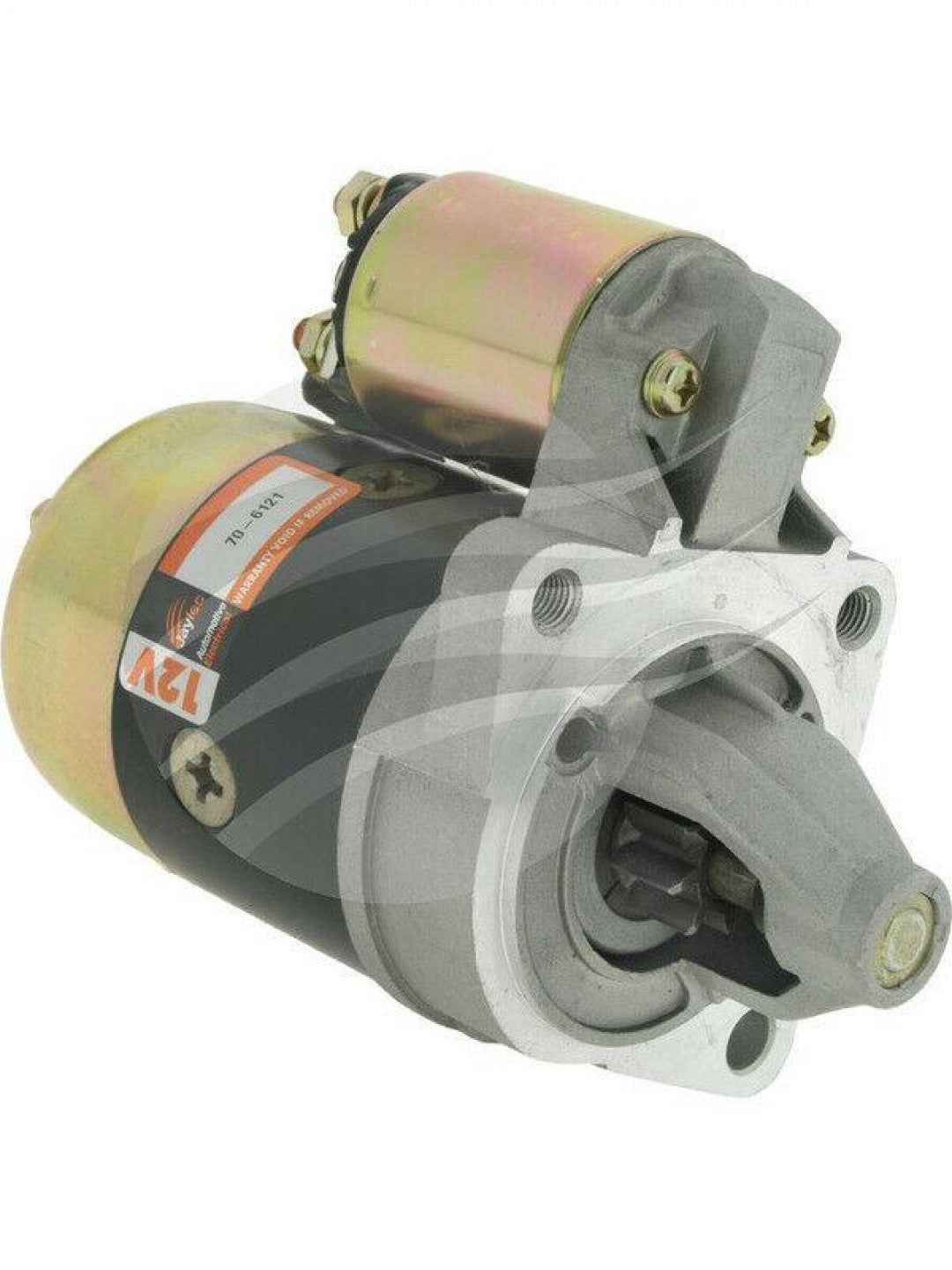

PLEASE CHECK PINION AT REST MEASUREMENT. THIS UNIT IS 15mm IF 12mm IS NEEDED USE 70-6122
| Specifications | |
| Voltage | 12V |
| Kilowatt | 0.8kW |
| Number of Teeth | 8T |
| Pinion Diameter | 28mm |
| Rotation | CW |
| Pinion at Rest | 16mm |
| Flange Diameter | 74mm |
| Mount Hole Center to Center | 110 x 78 x 78mm |
| Mount Hole Diameter | M10- 11mm |
| Overall Length | 189mm |
| Oil Sealed | |
| Series | |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) |
