Description
Description

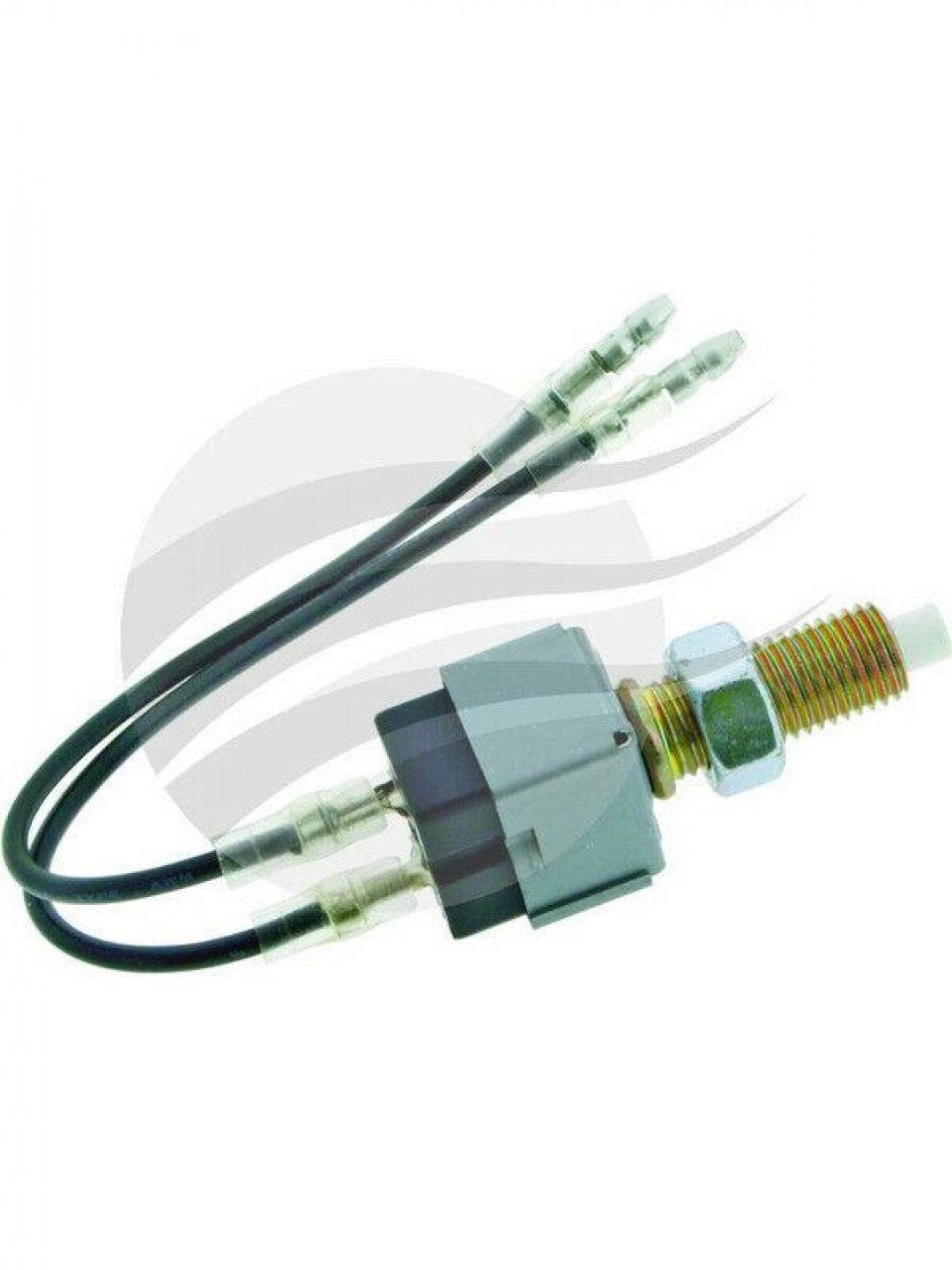

Jaylec Mechanical Stop Lamp Switch On/Mom Off.
2 Position - On/Mom Off- Single Pole - Single Throw- Plastic plunger.
Off when plunger depressed- spring return to On position- Normal position On.
Brake pedal mounting- Two pre-wired leads 5" or 127mm long.-2 Male Bullet terminals.-Mounting Stem: 23.45mm long with a M10 x 1.25 thread and 10.00mm diameter.-Plunger length: 6.35mm.-Applications:-Suits Toyota Vehicles 1975 - 1979
84340-12020
84240-12021
84340-20010
84340-22060
-84340-22070
84340-22071
84340-22072
84340-36030. 1 year Warranty.-Dimensions:-56mm x 23mm x 17mm.-Jaylec-
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | |
| Function | |
| Number of Terminals | 2 |
| Number of Postions | 2 |
| Contact Configuration | SPST |
