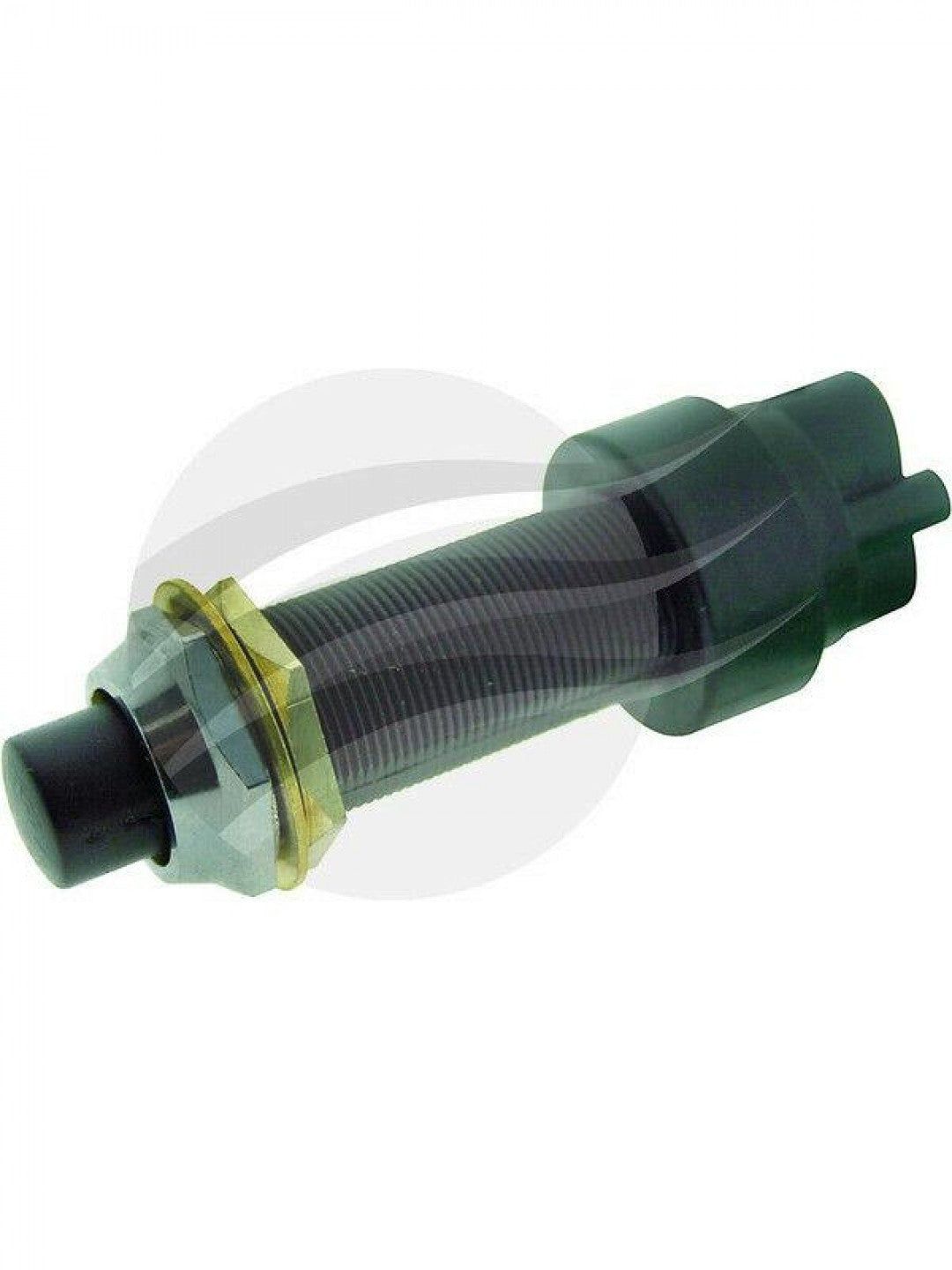

Jaylec Push Button Switch Off / Mom On 12/24 Volt 30amp
2 Position - Off / Mom On, Single Pole - Single Throw
Maximum Load: 30amp at 12 Volt, 15amp at 24 Volt
Black Plastic Actuator
On with actuator pressed - Spring return to Off Position
Silver Contacts
2 Screw terminals
Mounting Stem: 34.92mm long with a 5/8"-32 thread and 15.87mm diameter
Suits panel thickness 1.52mm to 25.40mm
Dimensions:- 71.29mm x 23.45mm
1 Year Warranty
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | 30 |
| Function | OFF / MOM ON |
| Number of Terminals | 2 |
| Number of Postions | 2 |
| Contact Configuration | SPST |
