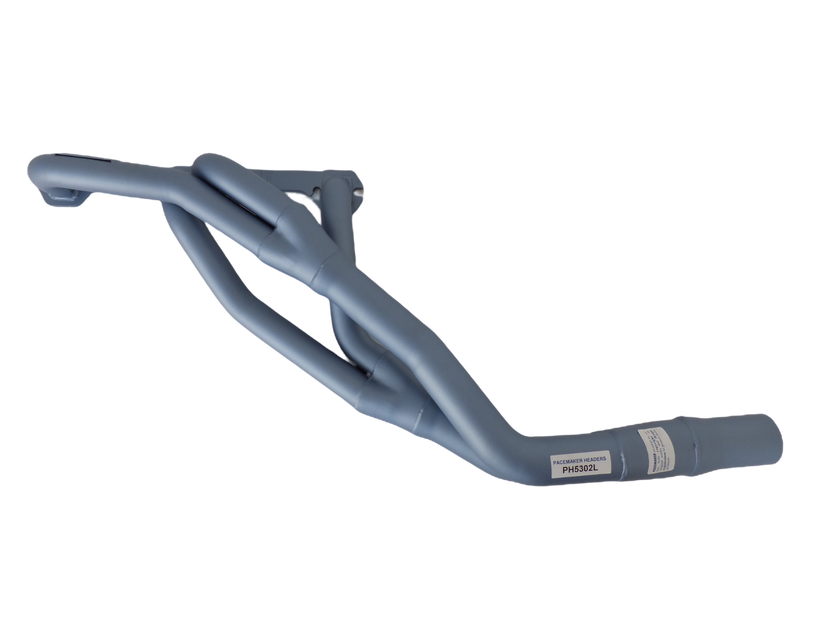

Pacemaker - PH 5302 Chevrolet 283-400 Small Block V8 1 5/8" Tri-Y To Suit Holden HK-HT-HG (PH5302)

Pacemaker Headers  |  SKU: PH5302 L/R
$937.49 $1,104.23
Tax included Shipping calculated at checkout.

Description
  • Holden HG-HT with Chev Small Block.
  • Manual & Automatic.
  • TRI-Y Design.
Part #: PH 5302
P/Steering: No Gasket: DSF 9
Air Con: N/A Primary Pipe: 1⅝" (41mm)
Oxy Sen: N/A Secondary Pipe: 2" (51mm)
E.G.R: N/A Outlet: 2¼" (57mm)
Y Branch: N/A Fitting Time: 3 Hrs


Note:

  • If required with alt. bracket on LH side order PH 5303
  • Will fit slant plug heads
  • Will fit Powerglide automatic
  • Will fit Turbo 400 automatic if vehicles floor has been cut for correct fitment of automatic
  • Will not fit column automatic unless linkages are modified
  • Will fit with power steering
  • Will only fit with original engine mounting spacers or; PACEMAKER spacers Part number PEMP 307
  • Spacers must be fitted on correct side of vehicle (RH spacer is ¼" higher than LH spacer)


PH5302 & PH5303 headers are designed to fit with a genuine factory starter when fitting to a 153 tooth (10 1/2") flex plate (auto only) or a 153 tooth (13") ring gear (manual only).

PH5302 & PH5303 headers will not fit the genuine factory starter when fitting to 168 tooth (11") flex plate (auto only) or a 168 tooth (14") ring gear (manual only). Pacemaker recommends the use of an after market hi-torque starter. Please choose carefully as not all starter solenoids are in the same position.


Important Information

Image might not reflect actual exhaust system. Shipping times can vary due to size, destination and availability. Please note some modification is required.

Warranty Period - 24 Months

Why Pacemaker Headers?

For over a quarter of a century, PACEMAKER has been innovating, designing and manufacturing quality exhaust headers in Australia. Pacemaker was the first company to introduce mandrel-bending technology into the exhaust header market, forever changing the header industry landscape.

Payment & Security

Payment methods

  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Pacemaker Headers

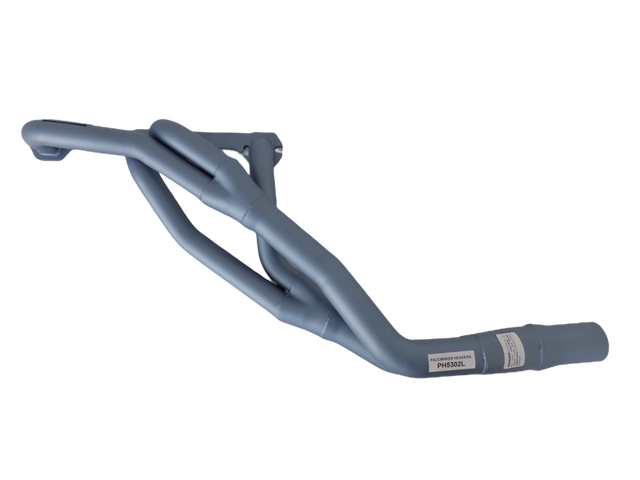

Pacemaker - PH 5302 Chevrolet 283-400 Small Block V8 1 5/8" Tri-Y To Suit Holden HK-HT-HG (PH5302)
