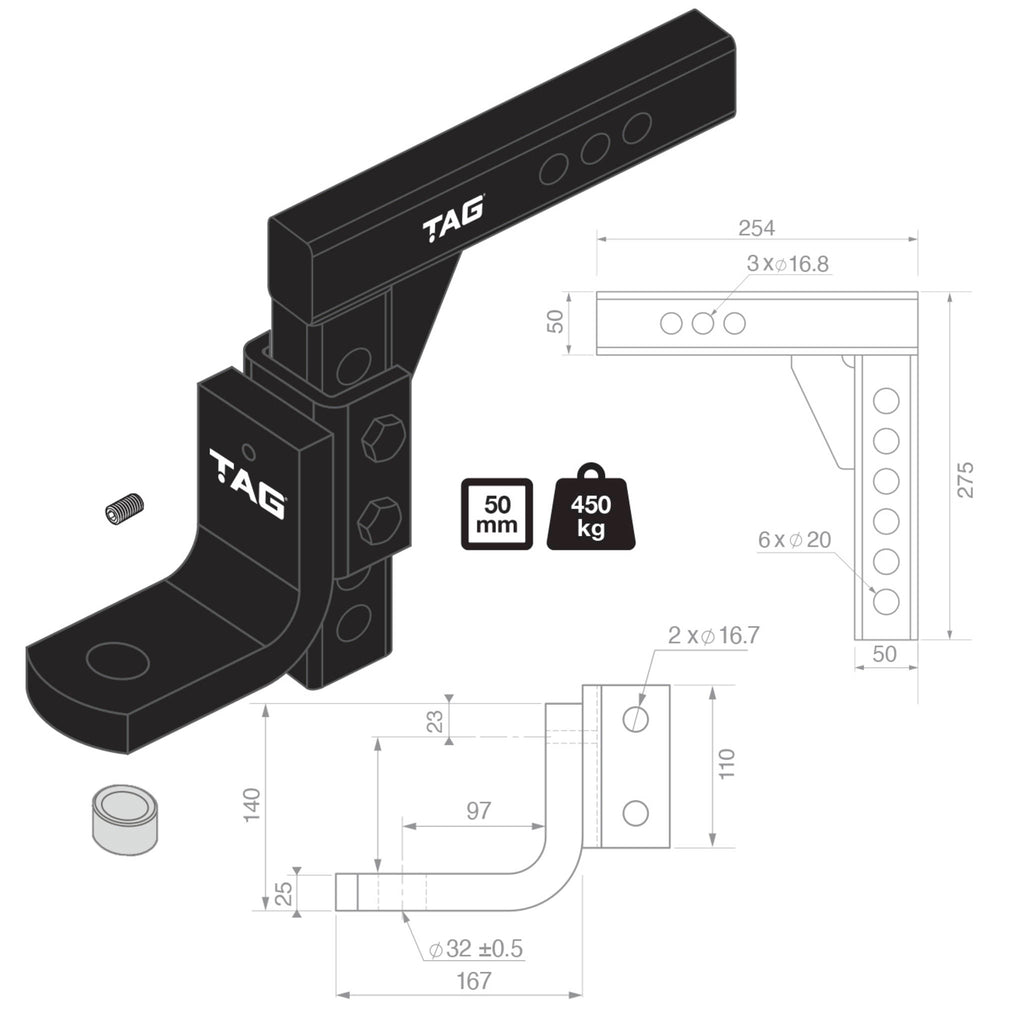

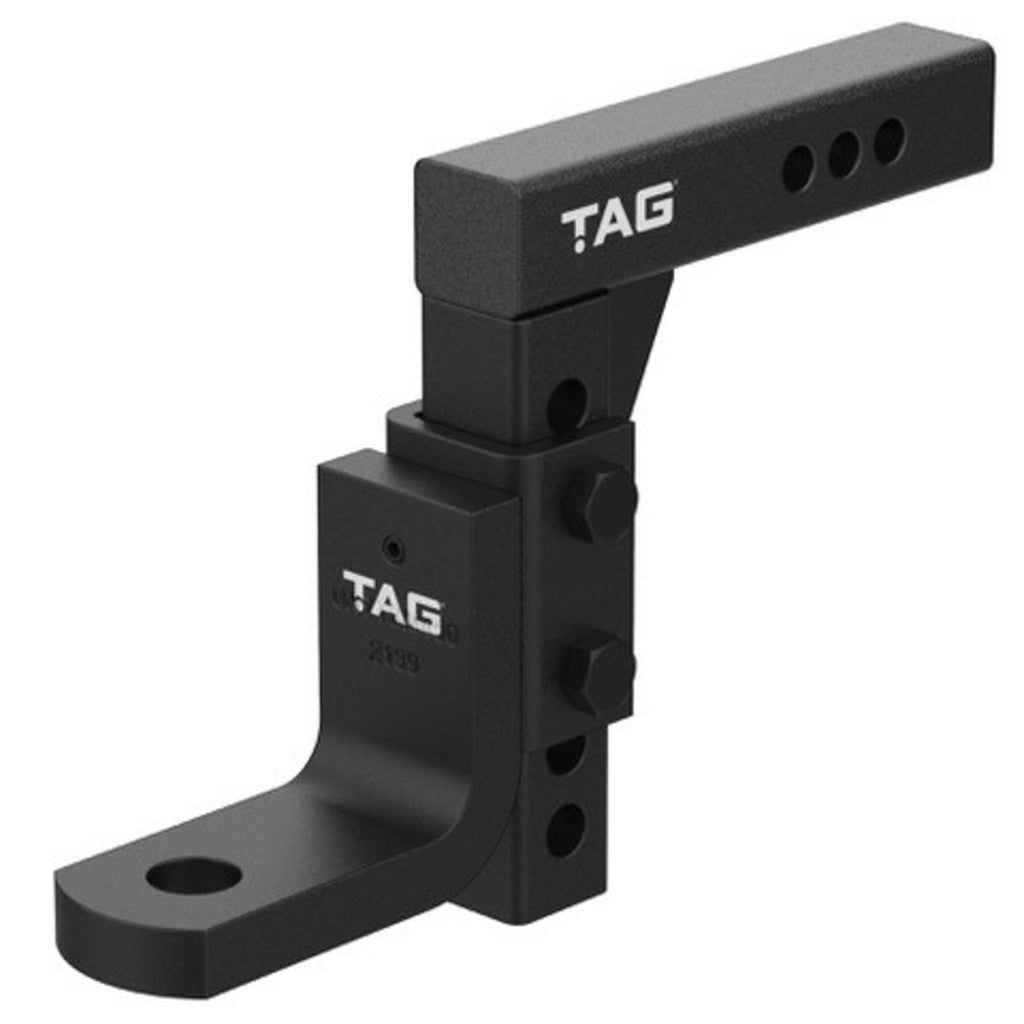

TAG - Adjustable Heavy Duty Tow Ball Mount - 90° Face, 50mm Square Hitch

The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup. For full compatibility, the unit includes a reducer allowing the use of a 70mm or 50mm tow ball. Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping.

• 90° Separate Tongue Face with four adjustable positions.
• Drop 115mm

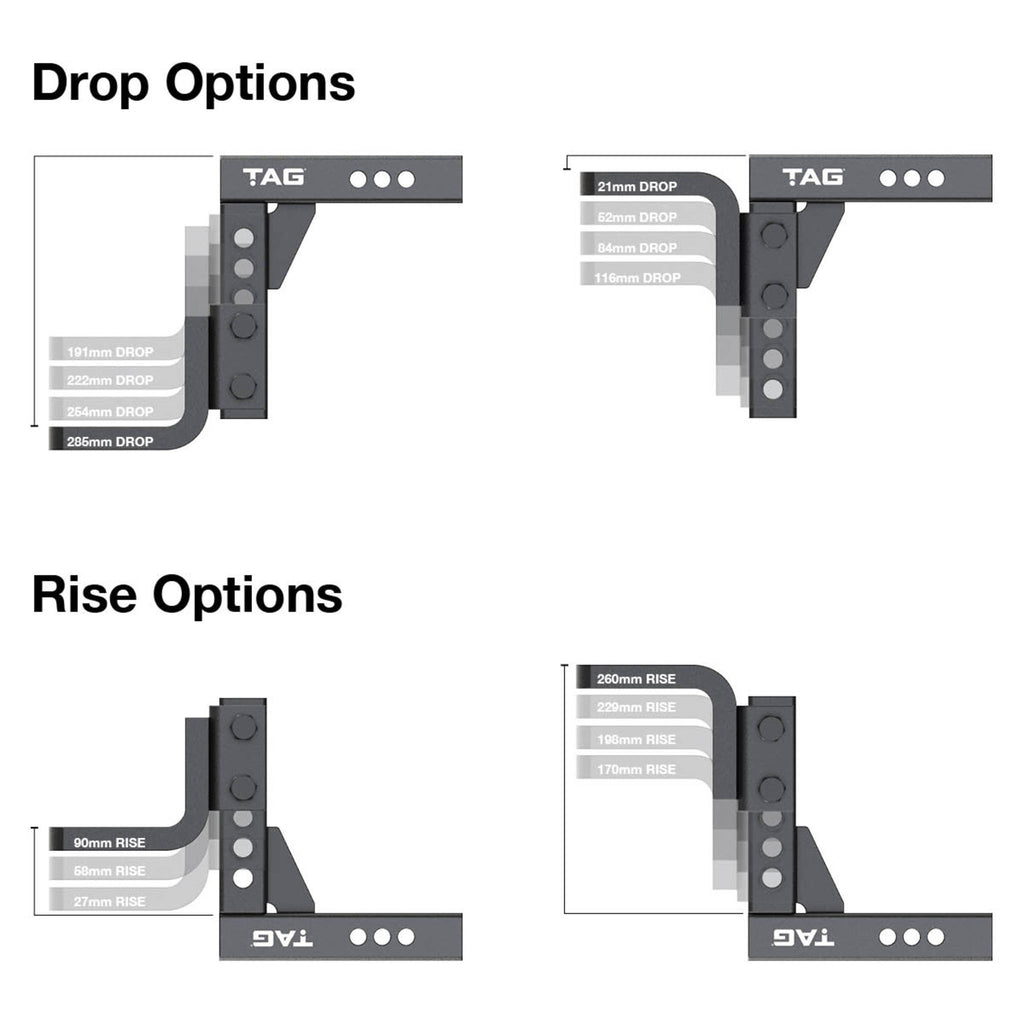

• Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
• Fits 70mm tow ball (or 50mm tow ball using included reducer)
• Gross Trailer Weight 4500kg (70mm Tow Ball) / 3500kg (50mm Tow Ball)
• Ball Weight 450kg (70mm Tow Ball) / 350kg (50mm Tow Ball)
• Durable Powder Coated Finish
• ADR 62/02 Compliant
• TAG Limited Lifetime Warranty
• Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
• Ensure you tighten Allen key grub screw before main attachment bolts.
• Torque spec on bolts that attach head to shank is 280nm.

Specifications

• Tow Ball Mount Class: Heavy Duty (Class 4)
• Gross Trailer Weight: 4500kg (70mm Tow Ball) / 3500kg (50mm Tow Ball)
• Ball Weight [kg]: 450kg (70mm Tow Ball) / 350kg (50mm Tow Ball)
• Hitch Type: Heavy Duty 50mm Square
• Drop: 115mm
• Tongue Face: 90°
• Coating: Powder Coated
• Adjustable: Adjustable
• Material Type: Solid Steel
